AUMA Actuator Control Unit Spare Parts
The AUMA actuator control unit is a critical component of these actuators, providing precise control and monitoring of valve operations. However, over time, these units may require replacement parts to ensure their continued performance. AUMA offers a range of high-quality actuator control unit spare parts, designed to meet the needs of various industries and applications. From circuit boards and power supplies to motor controllers and communication modules, AUMA spare parts are engineered for reliability and durability, ensuring the longevity and efficient operation of your electric actuators.
Spare parts list | AUMA Actuator Control Unit

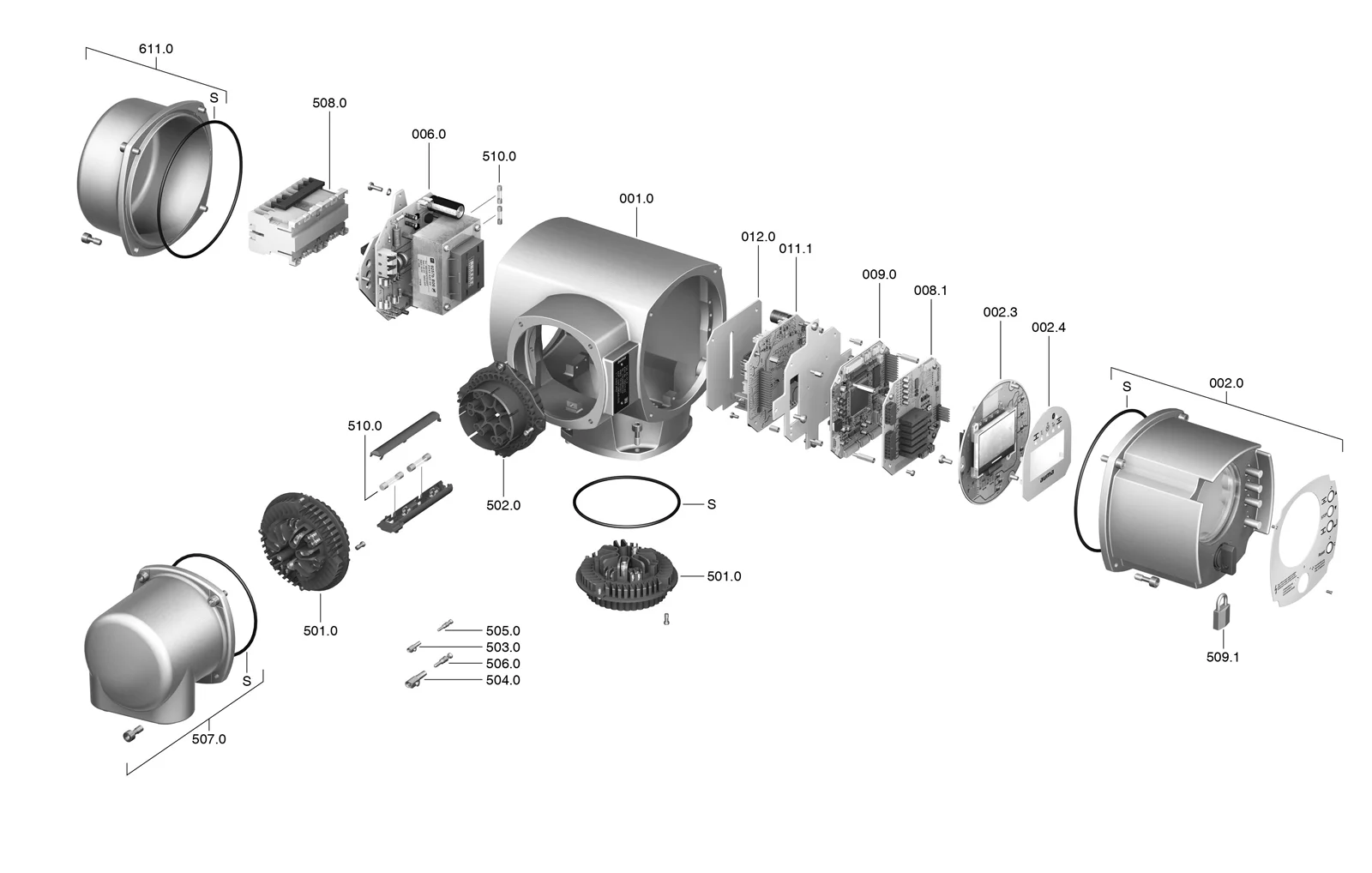

AC 01.2 S
Exploded view
AC Control unit
AC 01.2 S Controller
Zoom In
Mouse over the image to zoom
AUMA AC 01.2 S actuator control unit spare parts list
| Image Ref No | Description | Type |
|---|---|---|
| 001.0 | Housing | Sub-assembly |
| 002.0 | Local controls | Sub-assembly |
| 002.3 | Local controls board | Sub-assembly |
| 002.4 | Face plate for display | |
| 006.0 | Power supply unit | Sub-assembly |
| 008.1 | I/O board | |
| 009.0 | Logic board | Sub-assembly |
| 011.1 | Relay board | Sub-assembly |
| 012.0 | Option board | |
| 050.1 | Fieldbus connection board | Sub-assembly |
| 500.0 | Cover | Sub-assembly |
| 501.0 | Socket carrier (complete with sockets) | Sub-assembly |
| Image Ref No | Description | Type |
|---|---|---|
| 502.0 | Pin carrier without pins | Sub-assembly |
| 503.0 | Socket for controls | Sub-assembly |
| 504.0 | Socket for motor | Sub-assembly |
| 505.0 | Pin for controls | Sub-assembly |
| 506.0 | Pin for motor | Sub-assembly |
| 507.0 | Electrical connection for fieldbus without connection board (050.1) | Sub-assembly |
| 507.1 | Frame for electrical connection | Sub-assembly |
| 508.0 | Switchgear | Sub-assembly |
| 509.1 | Padlock | Sub-assembly |
| 510.0 | Fuse kit | Kit |
| 611.0 | Cover | Sub-assembly |
| S | Seal kit | Set |
Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts ProActuator from any liability. Representation of spare parts may slightly vary from actual delivery.
Spare parts list | AUMA Actuator Control Unit

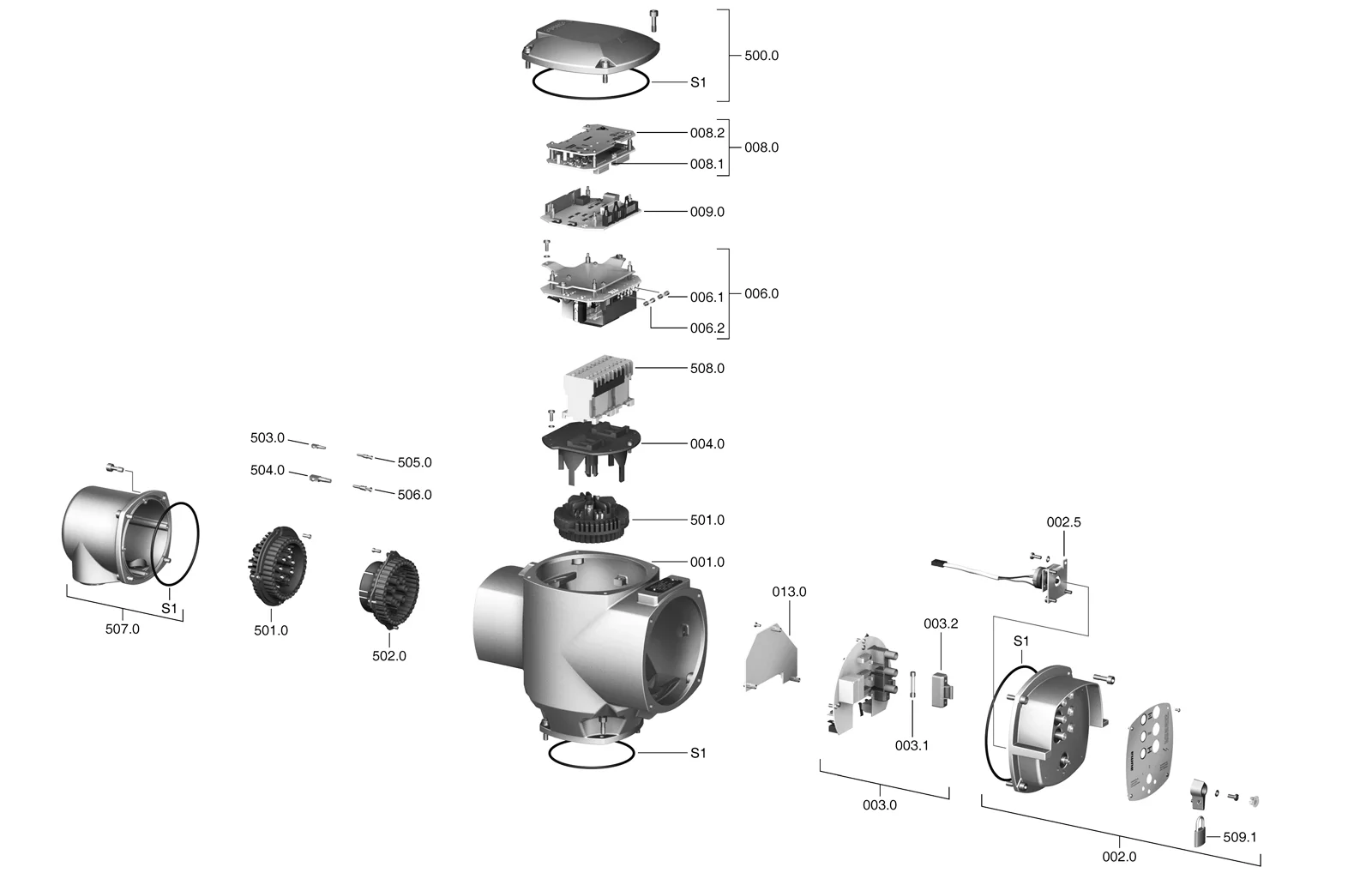

AM 01.1 / AM 02.1 S
Exploded view
AM Control unit
AM 01.1 / AM 02.1 S Controller
Zoom In
Mouse over the image to zoom
AUMA AM 01.1 / AM 02.1 S actuator control unit spare parts list
| Image Ref No | Description | Type |
|---|---|---|
| 001.0 | Housing | |
| 002.0 | Local controls | Sub-assembly |
| 002.5 | Selector switch | Sub-assembly |
| 003.0 | Signal and control board | Sub-assembly |
| 003.1 | Primary fuse F1/F2 | |
| 003.2 | Fuse cover | |
| 004.0 | Carrier for contactors | |
| 006.0 | Power supply unit | Sub-assembly |
| 006.1 | Secondary fuse F3 | |
| 006.2 | Secondary fuse F4 | |
| 008.0 | Interface board | Sub-assembly |
| 008.1 | Interface board | |
| 008.2 | Cover plate for interface board |
| Image Ref No | Description | Type |
|---|---|---|
| 009.0 | Logic board | Sub-assembly |
| 013.0 | Adapter board | Sub-assembly |
| 500.0 | Cover | Sub-assembly |
| 501.0 | Socket carrier (complete with sockets) | Sub-assembly |
| 502.0 | Pin carrier without pins | Sub-assembly |
| 503.0 | Socket for controls | Sub-assembly |
| 504.0 | Socket for motor | Sub-assembly |
| 505.0 | Pin for controls | Sub-assembly |
| 506.0 | Pin for motor | Sub-assembly |
| 507.0 | Cover for electrical connection | Sub-assembly |
| 508.0 | Switchgear | Sub-assembly |
| 509.1 | Padlock | |
| S | Seal kit | Set |
Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts ProActuator from any liability. Representation of spare parts may slightly vary from actual delivery.

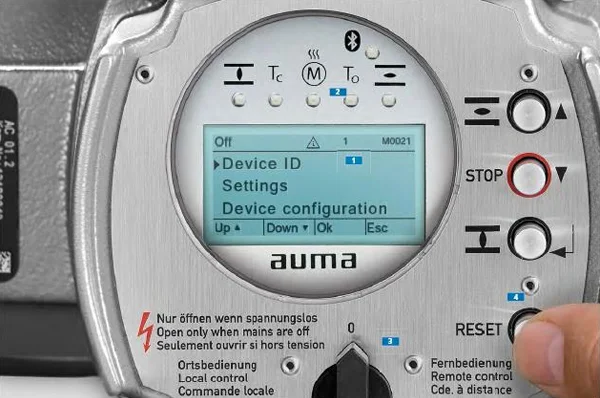

Using original actuator control unit spare parts of AUMA
When it comes to electric actuators, the control unit is a vital component that plays a critical role in ensuring efficient and safe operation. However, over time, the components of these units may become damaged or worn out, affecting the performance and reliability of the electric actuators. This is where AUMA actuator control unit spare parts come in. AUMA, a leading manufacturer of electric actuators, offers a wide range of high-quality spare parts, including seal kits, boards, connections, motors, and housing, to ensure optimal performance and longevity of your AUMA actuators.
AUMA actuator control unit spare parts are essential for the continued performance and reliability of your electric actuators. With a range of high-quality spare parts, compatibility with AUMA electric actuators, and excellent customer service, ProActuator is the best option for your actuator control unit spare part needs. Whether you need a seal kit, board, connection, motor, or housing, ProActuator covers you with reliable and long-lasting spare parts. By choosing ProActuator, you can ensure that your electric actuators are operating efficiently and safely, reducing downtime and maintenance costs in the long run.
