AUMA actuator troubleshooting guide

AUMA actuators are widely recognized for their reliability and efficiency in industrial automation and pipeline systems. These electric actuators play a critical role in controlling the flow of fluids and gases through valves, ensuring the smooth operation of various industrial processes. However, as with any complex machinery, issues can arise and disrupt the performance of AUMA actuators. To help you quickly diagnose and resolve these problems, we have compiled a comprehensive AUMA actuator troubleshooting guide covering everything from common issues to preventive maintenance tips.

Do you need original AUMA parts?
ProActuator is the supplier of original AUMA Riester GmbH equipment and spare parts.
Send us an email:

    Contact Us Now!

    Identifying Common AUMA Actuator Issues

    Faulty Actuator Motor

    AUMA actuators rely on electric motors to drive the movement of the valve. The actuator may not function right if the motor fails or experiences issues. Common signs of a faulty motor include:

    • Excessive noise or vibration during operation
    • Intermittent or complete loss of power
    • Overheating or burnt smell

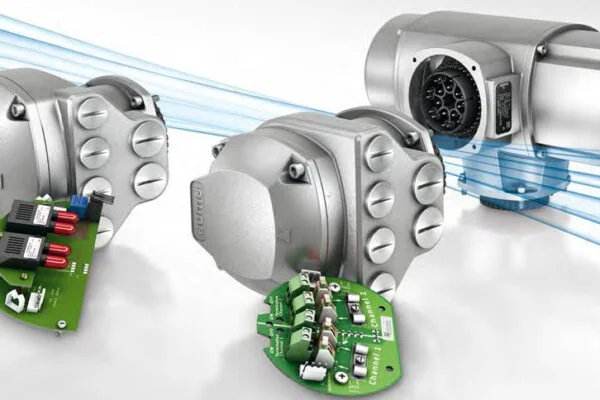

    Damaged Wiring or Connections

    Loose, damaged, or corroded wiring can lead to various issues, including intermittent function, loss of control signals, and even short circuits. Inspect the wiring and connections for visible damage, corrosion, or loose connections.

    Incorrect Valve Position

    If the valve’s position does not match the desired setting, this could indicate a problem with the actuator’s position feedback system or mechanical linkage. Ensure that the position feedback system functions correctly and that the mechanical linkage between the actuator and the valve is secure and properly aligned.

    Control System Malfunctions

    Issues with the control system can lead to erratic actuator behaviour or loss of control altogether. Faulty control signals, damaged control panels, or incorrect configuration settings can all contribute to controlling system malfunctions.

    AUMA actuator troubleshooting guide

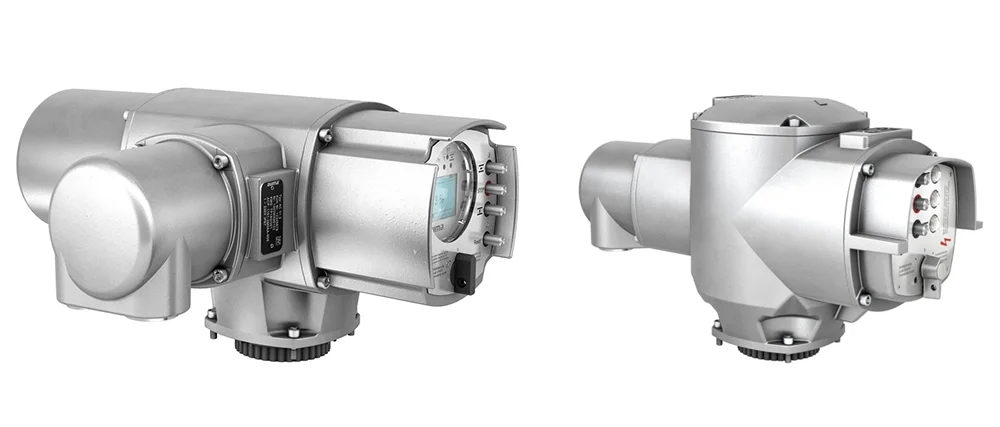

    Actuator Control Unit Product Page
    Control Units

    Microprocessor-based or simple controls

    Explore More

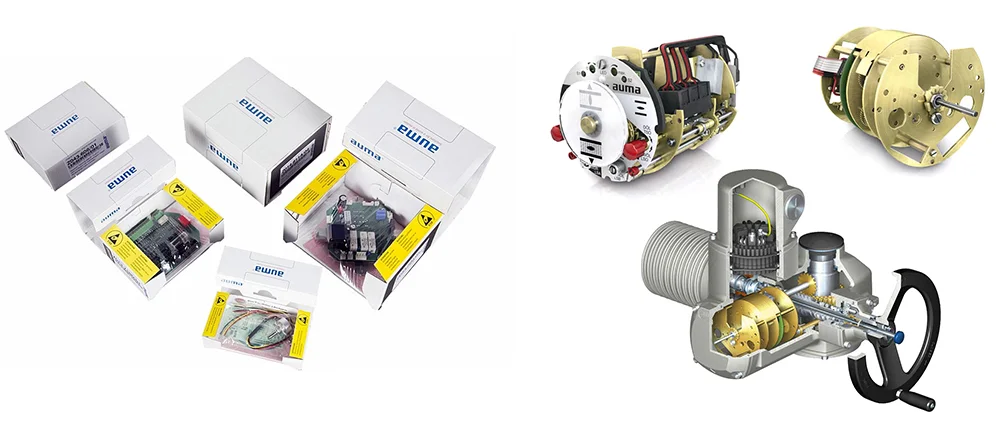

    Spare Parts Product Page
    Spare Parts

    Original AUMA actuator spare parts

    Explore More
    Gearboxes Product Page

    Multi-Turn and Part-Turn gearboxes

    Explore More

    Click here to download operating manual of:

    Multi-turn actuators AUMA SA 07.2 – SA 16.2/SAR 07.2 – SAR 16.2 with actuator controls AUMA MATIC BASIC AMB 01.1/AMB02.1

    Click here to download operating manual of:

    AUMA SA 072 SA 162 SAR 072 SAR 162 AUMA NORM without controls

    Troubleshooting AUMA Actuators

    Step 1: Verify Power Supply and Control Signals

    Before diving into the actuator, ensure that the power supply and control signals function correctly. This includes checking the following:

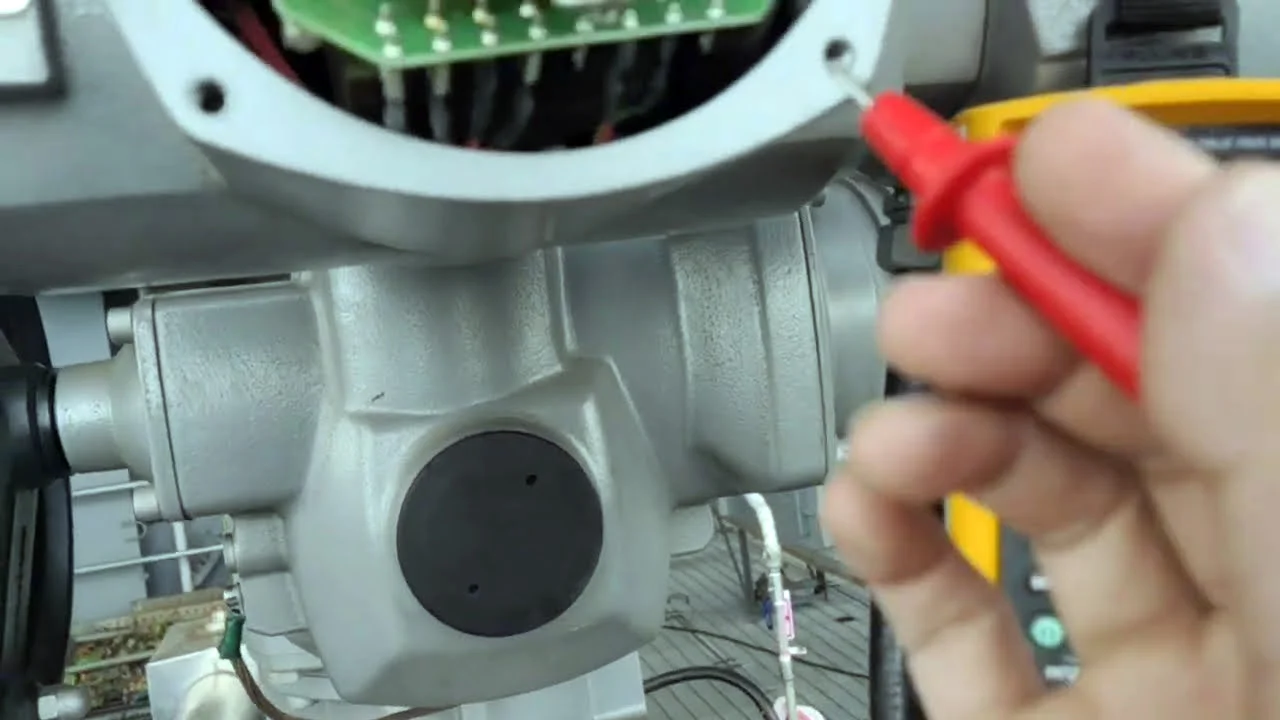

    • Voltage levels at the actuator terminals
    • Continuity of control wires
    • Proper grounding of the actuator and control system

    Step 2: Analyze Actuator Error Codes and Diagnostic Information

    AUMA actuators typically provide error codes and diagnostic information to help identify issues. Consult the actuator’s user manual to understand the meaning of specific error codes and follow any recommended troubleshooting steps.

    Step 3: Inspect Mechanical Components

    Examine the actuator’s mechanical components, including the motor, gearbox, and mechanical linkage, for signs of wear or damage. Look for:

    • Loose, worn, or damaged gears
    • Broken or damaged shafts
    • Excessive play or misalignment in the mechanical linkage

    Step 4: Check Electronic Components

    Inspect the actuator’s electronic components, including the control board, position feedback system, and motor, for signs of damage or malfunction. Common issues include:

    • Burnt or damaged components on the control board
    • Faulty position feedback sensors
    • Damaged motor windings

    Step 5: Perform Calibration and Configuration Checks

    Ensure that the actuator is correctly calibrated and configured for the specific valve and control system in use. This may involve checking the following:

    • Position feedback calibration
    • Control signal configuration settings
    • Torque and limit settings
    AUMA actuator troubleshooting guide

    Preventive Maintenance for AUMA Actuators

    Regular preventive maintenance should be performed on AUMA actuators to minimize the likelihood of issues arising. This can include:

    • Periodic inspection of mechanical components for wear and damage
    • Lubrication of gears and other moving parts
    • Inspection and cleaning of electrical connections and wiring
    • Regular calibration checks and configuration updates
    • Replacement of worn or damaged components as necessary

    FAQs for AUMA actuator troubleshooting guide

    How do I reset an AUMA actuator?

    To reset an AUMA actuator, refer to the specific actuator model’s user manual for instructions on performing a reset procedure. This typically involves cycling the power supply or using a specific control input sequence.

    How can I tell if my AUMA actuator is functioning correctly?

    A properly functioning AUMA actuator should smoothly and accurately control the valve position in response to control signals. Additionally, there should be no excessive noise or vibration during operation. The actuator should not generate error codes or diagnostic warnings.

    How often should I perform preventive maintenance on my AUMA actuator?

    The frequency of preventive maintenance will depend on the specific actuator model and the operating conditions in your facility. Consult the actuator’s user manual for recommended maintenance intervals and procedures.

    Conclusion for AUMA actuator troubleshooting guide

    AUMA actuators play a critical role in industrial automation and pipeline systems, so ensuring their proper function is essential for maintaining smooth operations. By following this comprehensive AUMA actuator troubleshooting guide, you can effectively diagnose and resolve common issues that may arise. Additionally, performing regular preventive maintenance can help to minimize the likelihood of problems occurring in the first place, ensuring the long-term reliability of your AUMA actuators.
